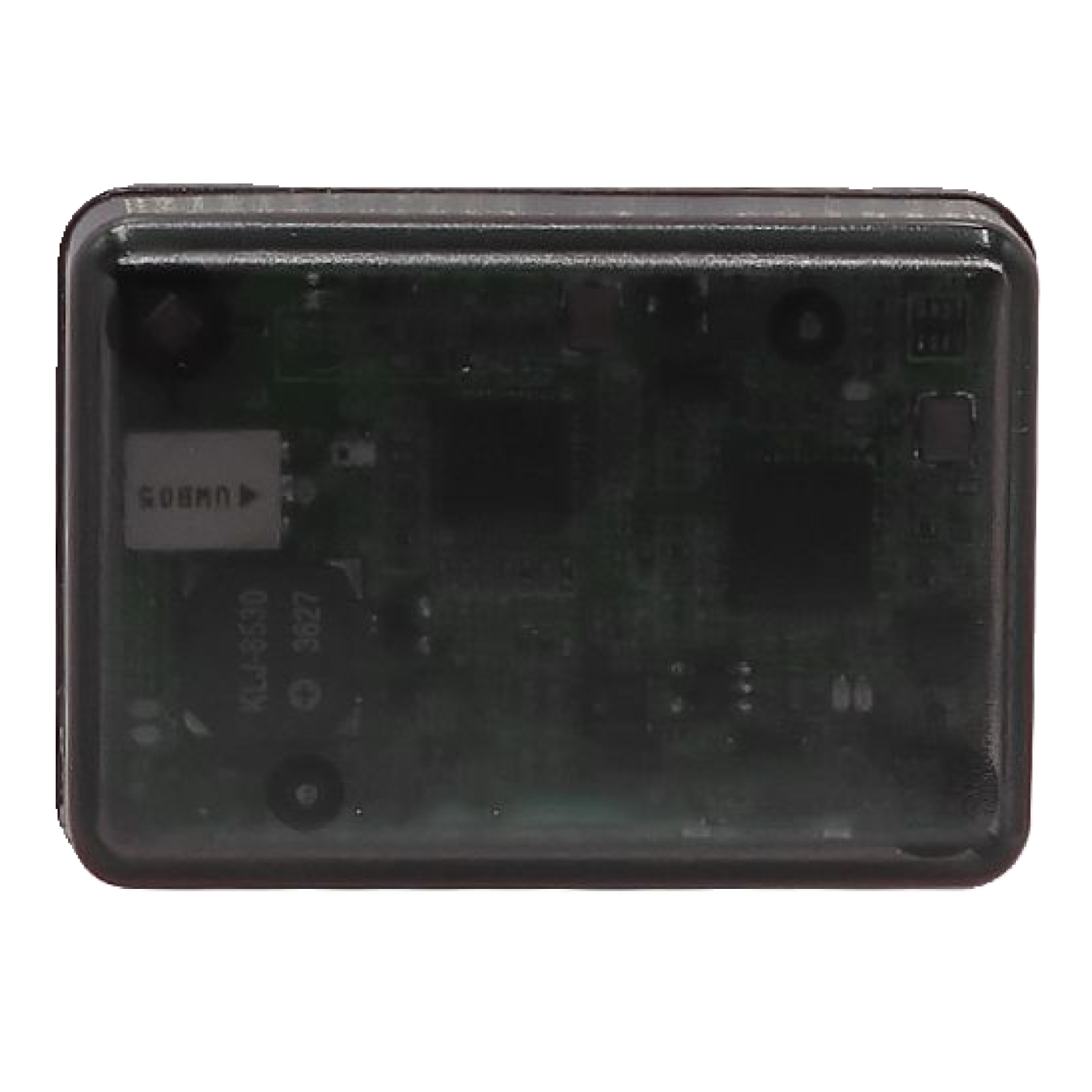

Asset Tag
Compact UWB Asset Tag for Precise Tracking and Smart Alerts
UWB Communication: Utilizes 802.15.4a UWB for accurate positioning.
Compact Design: Measures 51×36×15 mm; weighs 29g.
Integrated Alerts: Includes G-sensor, buzzer, and vibration motor.
Extended Battery Life: 500mAh battery lasts over 4 months.
Customizable Settings: Adjustable transmission intervals and ID configurations.
Asset Tag
The B•SAFE Asset Tag offers compact, precise tracking for assets and objects using 802.15.4a UWB technology with 360° coverage up to 50 meters. Weighing only 29g, it integrates a G-sensor, buzzer, and vibration motor for smart alerts. Powered by a 500mAh battery lasting over 4 months, it’s ideal for warehouses, stockrooms, semiconductor facilities, and exhibition halls—providing real-time visibility and helping organizations safeguard tools, equipment, and materials in dynamic environments.
| Details | |
|---|---|
| Model Name | BST-5136-G0 |
| Frequency | 802.15.4a UWB, 3.25GHz~6.75GHz |
| Power Type | 500mAh lithium battery |
| Battery Lifetime* | Up to 4 months *Based on 2-second interval in UWB SmartIPS personnel tracking mode |
| Dimension | 51 × 36 × 15 mm |
| Weight | 29 g |
| Sensor | Includes G-sensor, buzzer, and vibration motor |
| Detection Distance | 360° / 50m (line-of-sight) |
| Type Approval | CE / MIC / NCC |
| Charging Port & Voltage | Micro USB port, DC +5V input |
| Button Type | Power ON/OFF |
| LED Indicator | Power status, Communication status |
| Deployment Scenarios | Warehouses, Retail Stockrooms, Tool Management Areas, Exhibition Halls, Semiconductor Manufacturing Facilities. |
| Where to Install | Asset, Object. |
