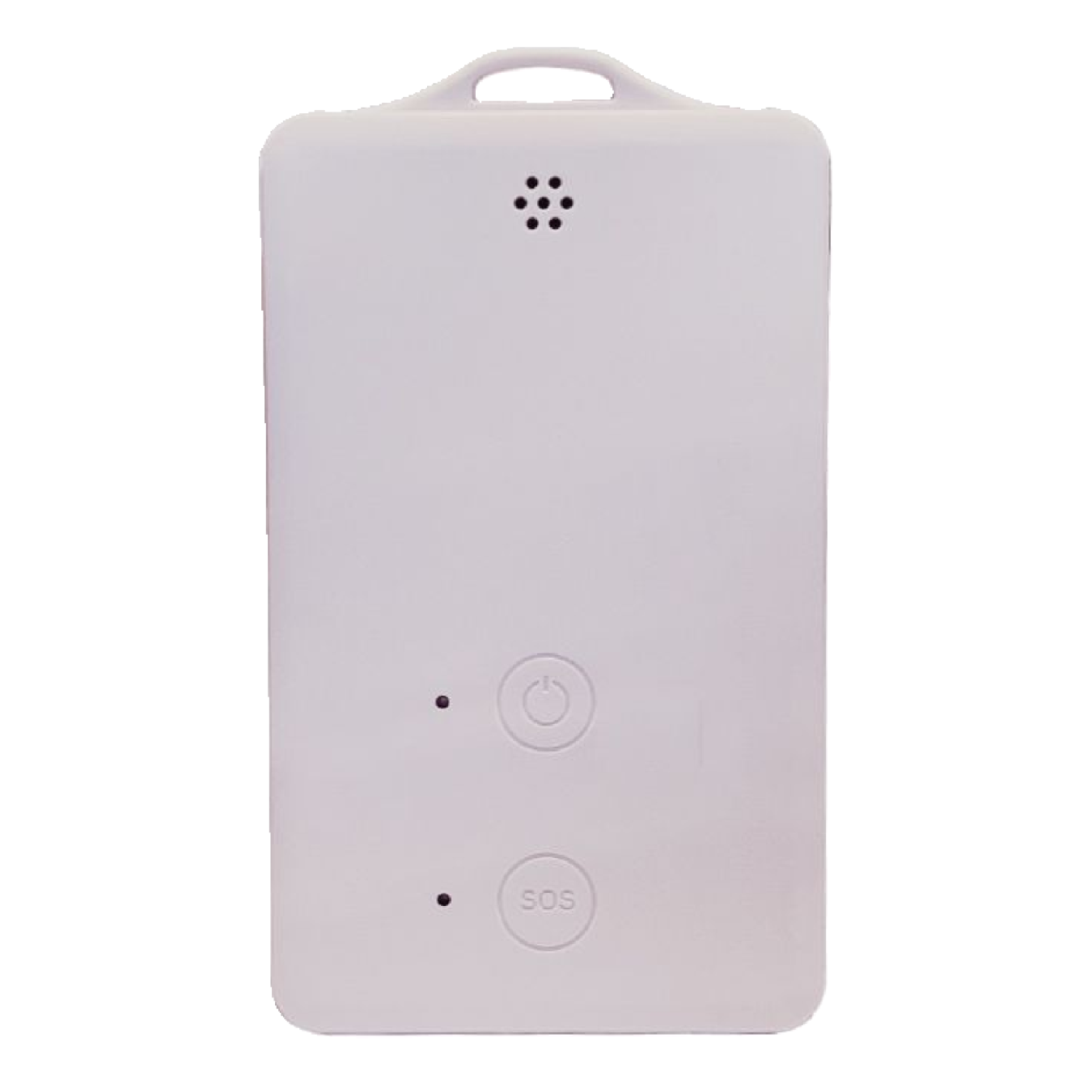

GPS Smart Badge
Rugged GPS Smart Badge for Wide-Area Tracking and Emergency Alerts
Multi-Mode Positioning: Supports GPS, BeiDou, and BLE for accurate tracking.
Durable Design: IP65-rated, waterproof and explosion-proof construction.
Extended Battery Life: 1000mAh battery lasts up to 60 days standby.
Emergency Alert: SOS button for immediate assistance requests.
Integrated Sensors: Includes accelerometer for motion detection and alerts.
GPS Smart Badge
The B•SAFE GPS Smart Badge provides real-time tracking using GPS, BeiDou, and BLE technologies. Built with a durable, IP65-rated, explosion-proof design, it’s ideal for outdoor use across construction sites, field service teams, and search & rescue operations. With a 1000mAh battery offering up to 60 days of standby, SOS emergency alerts, and fall detection capabilities, it ensures personnel safety, improves location visibility, and enables rapid response even in challenging environments.
| Details | |
|---|---|
| Model Name | BST-9990C |
| Environmental Rating | IP65 |
| Power Type | 1000 mAh Li-ion, 3.7V |
| Battery Lifetime* | • Standby Mode: 60 days; • Normal Mode: 10 – 15 days; • GPS ON: 16 hrs |
| Dimension | 102.8 × 62 × 8.5 mm |
| Weight | 58 g |
| Sensor | Fall Detection, Motion Detection (Auto Sleep when stationary) |
| Backhaul | 4G LTE CAT-1, Micro SIM LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 |
| Type Approval | NCC |
| ATEX | SYEx23.01279, Ex ib IIC T4 Gb, Ex ib IIIC T130℃ |
| Positioning Method & Accuracy | • GPS: 2 – 10m in open environment • Bluetooth: 1 – 3m with dense Beacons; 1m with AOA gateway |
| Charging Port & Voltage | Contact Charging Pin @ 5V / 1A |
| Button Type | SOS, Power ON/OFF, Hidden Reset |
| LED Indicator | Red: charging; Green: Operation |
| Deployment Scenarios | Outdoor Construction, Field Service Teams, Logistics Yards, School Excursions, Search & Rescue. |
| Where to Install | Wearable on a lanyard. |
