LoRaWAN® Smart Badge
Multi-Technology LoRaWAN® Smart Badge for Hybrid Wide-Area and Indoor Tracking
Multi-Technology Positioning: GPS, BLE, Wi-Fi, and LoRa for hybrid tracking
Emergency Alarm: Noticeable button with audible, visual, and vibration alerts
Waterproof and Durable: IP67-rated enclosure for harsh environments
Flexible Modes: Supports standby, timing, periodic, and motion-triggered modes.
Magnetic Charging: Easy and reliable charging method

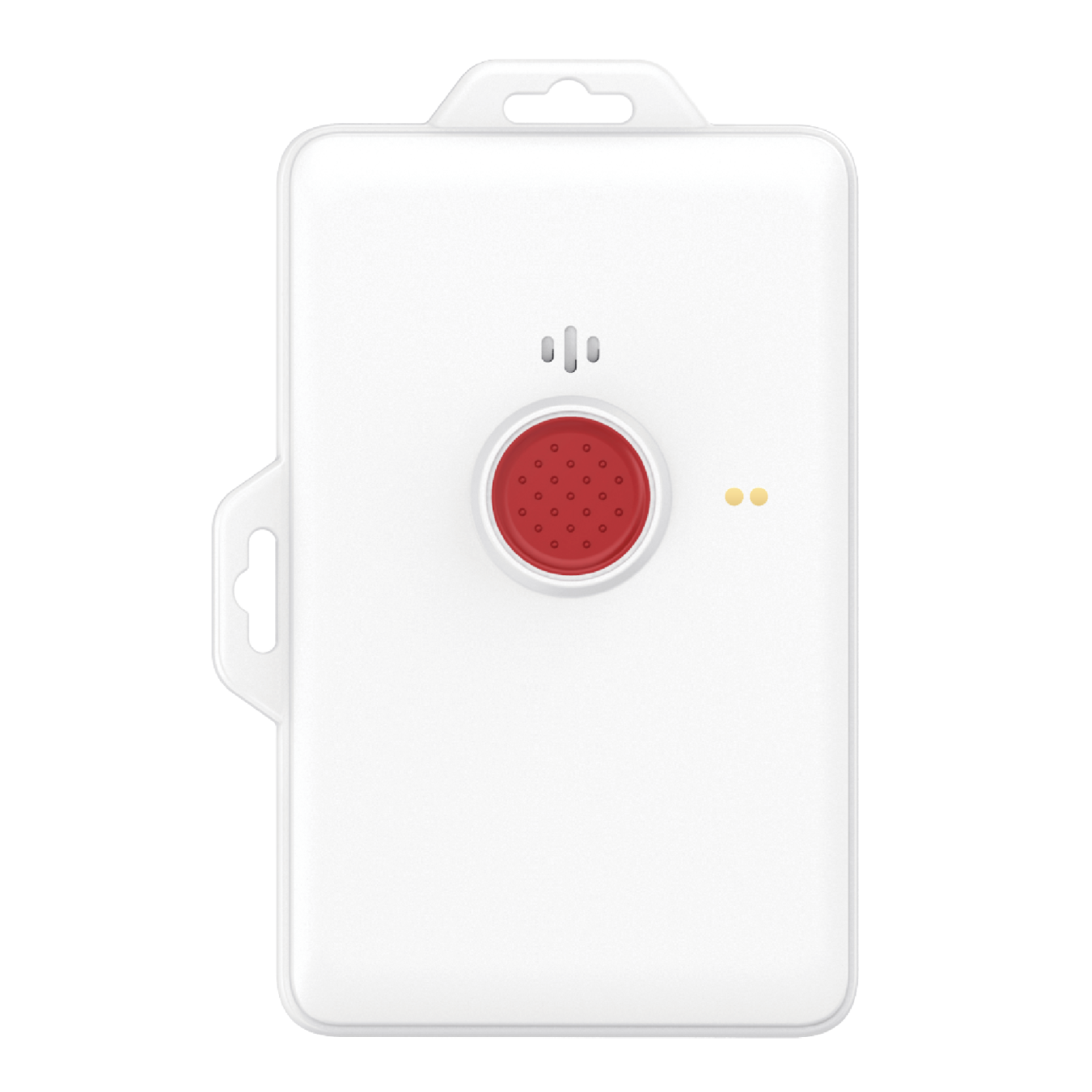

LoRaWAN® Smart Badge
The B•SAFE LoRaWAN® Smart Badge combines GPS, Wi-Fi, BLE, and LoRaWAN® technologies to deliver flexible, hybrid location tracking. Designed for airports, hospitals, warehouses, and universities, it features a 1500mAh battery offering up to 332 days of operation under LoRa-only mode. With an emergency SOS button, IP67-rated waterproof protection, magnetic contact charging, and support for motion-triggered and periodic reporting, it ensures personnel safety and asset visibility across large indoor and outdoor environments.
| Details | |
|---|---|
| Model Name | BST-LW0006 |
| Frequency | EU868 / AU915 / US915 / AS923 / IN865 / KR920 / EU433 / CN470 / JP920-9233 |
| Protocol | LoRaWAN® V1.0.3 |
| Transmit RF Power | Max. 21 dBm |
| Receive Sensitivity | -137dBm@SF12 300bps |
| Environmental Rating | IP67 |
| Power Type | 1500mAh Rechargeable battery |
| Battery Lifetime* | Interval 10 mins: • Only Wi-Fi: 208 days • Only Bluetooth: 277 days • Only LoRa: 332 days |
| Dimension | 96.5 x 61.6 x 10mm 103.3 x 68.4 x 11.8mm(Includes lugs） |
| Weight | 70g |
| Type Approval | CE/FCC/Reach/RoHS |
| ATEX | optional |
| Positioning Method & Accuracy | GPS Semtech LoRa Cloud Bluetooth V5.0, Max. TX Power: 8dBm Wi-Fi |
| Charging Port & Voltage | Magnetic Contact Charging Pin @ 5V / 1A |
| Button Type | SOS, Power ON/OFF |
| LED Indicator | Power ON/OFF, Network Status, Positioning Status, Alarm Status. |
| Deployment Scenarios | Airports, Hospitals & Health Care Centers, Warehouses, Universities, Manufacturing Plants, Government Buildings. |
| Where to Install | Wearable on a lanyard. |
