Tank Level Sensor
Smart Tank Sensor for Wireless Level and Pressure Monitoring
LoRaWAN® Connectivity (1.0.3 Compliant): Enables long-range, low-power data transmission from remote tanks.
Wi-Fi Positioning and BLE Configuration: Supports indoor/outdoor location scanning and mobile app setup via Bluetooth.
Optional Pressure Monitoring via BLE Transducer: Adds pressure insights for a more complete tank health overview.
IP66-Rated Rugged Design: Built for harsh environments with strong resistance to water and dust.
Long Battery Life: 19000mAh lithium battery supports up to 3 years of operation, depending on reporting frequency.

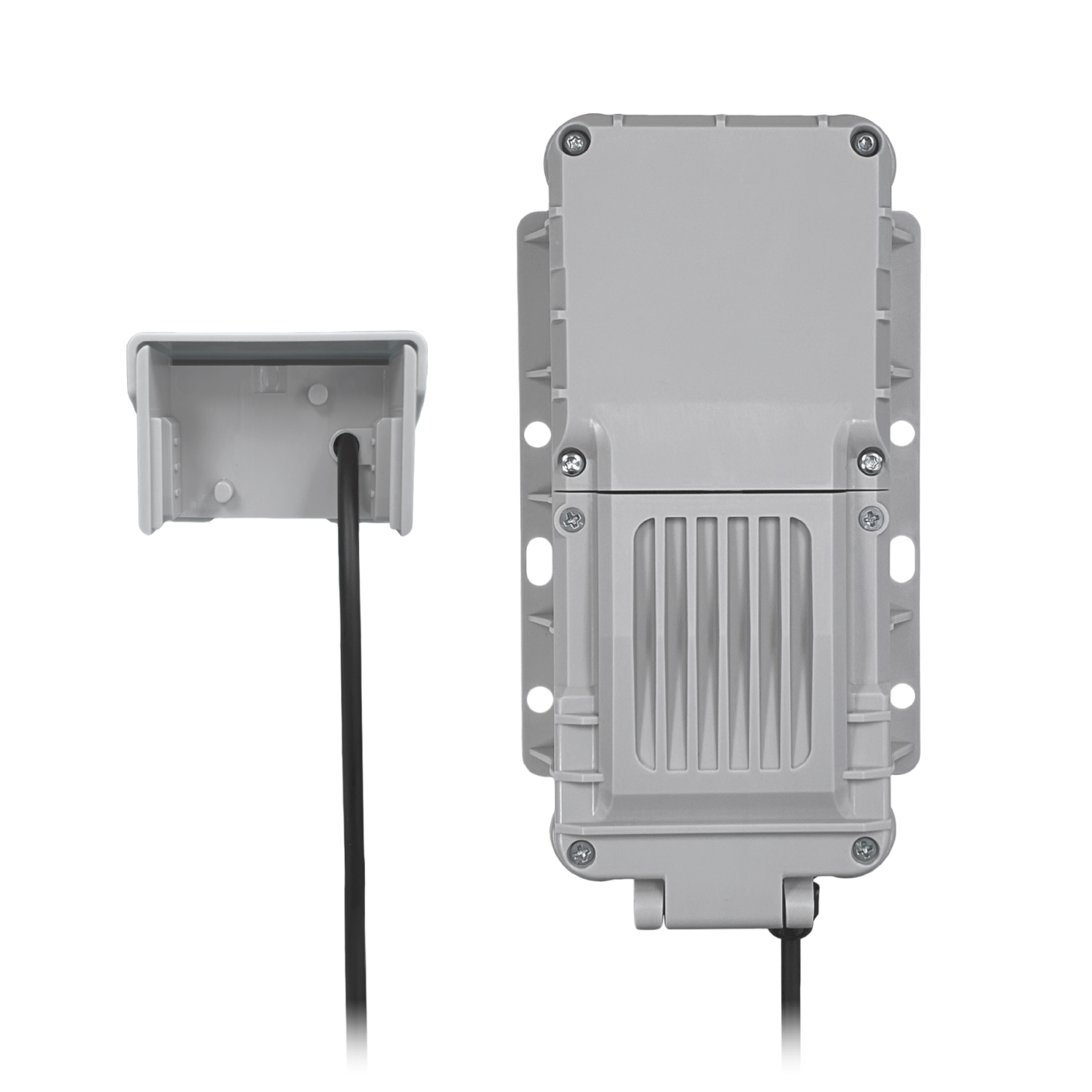

Tank Level Sensor
The Gasmatic Tank Level Sensor (L0010) offers reliable, real-time liquid storage monitoring using LoRaWAN® connectivity. Designed for rugged environments with IP66 protection, it features long battery life (up to 3 years), OTA firmware upgrades, and Bluetooth configurability. Optional BLE pressure sensing and Wi-Fi-based positioning replace manual tank checks with automated, high-precision insights, which are ideal for remote or distributed tanks in industrial, agricultural, or utility operations. Experience smarter tank management with seamless, low-maintenance deployment.
| Details | |
|---|---|
| Model Name | L0010 |
| Frequency | EU 868 MHz US 902~928 MHz |
| Protocol | LoRaWAN 1.0.3 |
| Antenna Gain | LoRa: -0.8dBi Peak Wi-Fi: 2.5dBi Peak |
| Receive Sensitivity | LoRa: -130dBm(SF=12) Wi-Fi : - 90 dBm(802.11b) |
| Operation Temperature | -30 to 55°C |
| Environmental Rating | IP66 equivalent |
| Power Type | 3.6V Lithium battery (ER34615), 19000mAh |
| Battery Lifetime* | Up to 3 years. *Note: Battery life is primarily influenced by the reporting frequency. Other factors include moisture and high temperature. |
| Average Current | 180μA(Sleeping mode) |
| Dimension | 171mm x 99mm x 57mm |
| Weight | 385 g |
| Sensor | • Hall linear sensor: A combination of 4 hall effect sensors for detecting the magnetic bar • Hall effect sensor: detection range: 1cm |
| Type Approval | CE/FCC/IC in progress |
