Tank Level Sensor - Analog
Smart Analog Tank Sensor for Wireless Liquid Level Monitoring
Connects Traditional Gauges to the Cloud: Supports 0–5V, 4–20mA, and Modbus RS485 signal types.
Wireless LoRaWAN® Communication: Sends tank level data over long distances with low power use.
Wi-Fi Location & Bluetooth Setup: Easily set up with your phone and track approximate location via Wi-Fi scan.
Rugged and Weather-Resistant (IP66): Built tough for outdoor and industrial environments.
Optional Pressure Monitoring: Works with a separate wireless sensor for added pressure tracking.
Tank Level Sensor - Analog

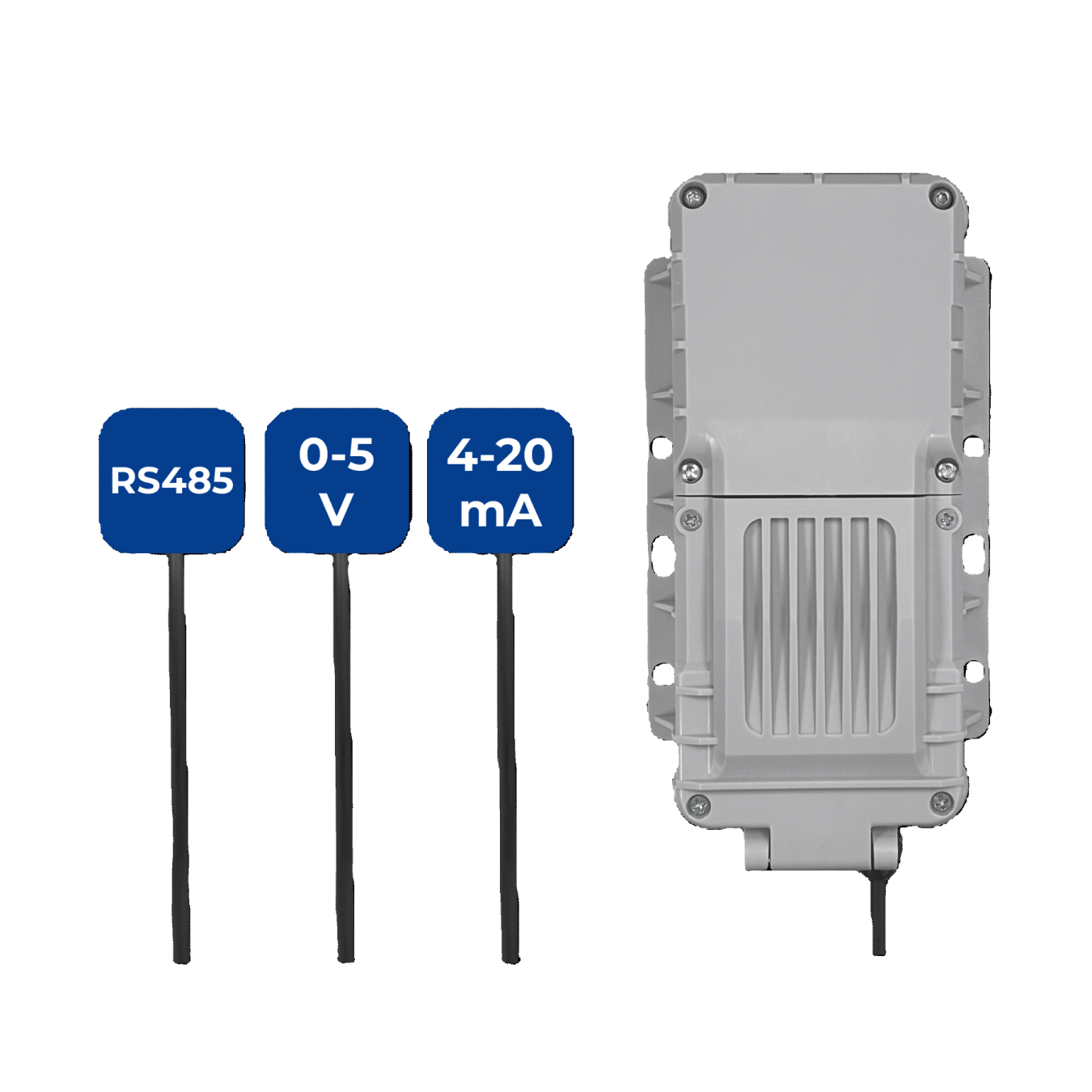

The Analog Tank Level Sensor makes it easy to track liquid levels by converting traditional gauge signals (0–5V, 4–20mA, or Modbus) into real-time wireless data. Powered by LoRaWAN®, it connects tank readings directly to your dashboard, eliminating manual checks. Built to last with an IP66-rated housing, it also supports Bluetooth setup, firmware upgrades over the air, and optional pressure monitoring via a wireless sensor. It’s ideal for upgrading existing tanks in industrial or agricultural settings.
| Details | |
|---|---|
| Frequency | EU 868 MHz US 902~928 MHz |
| Protocol | LoRaWAN 1.0.3 |
| Antenna Gain | LoRa: -0.8dBi Peak Wi-Fi: 2.5dBi Peak |
| Receive Sensitivity | LoRa: -130dBm (SF=12) Wi-Fi : - 90 dBm (802.11b) |
| Operation Temperature | -30 to 55°C |
| Environmental Rating | IP66 equivalent |
| Type Approval | CE/FCC/IC in progress |
| Remark | Analog Input Support: • 0-5 V • 4-20 mA • Modbus RS485 *We offer different SKUs with various interface options. Please contact us with your requirements at sales@browan.com. |
