Temperature & Humidity Sensor
Reliable Indoor Temperature and Humidity Monitoring for Consumer and Facility Applications
Compliance to LoRaWAN® 1.0.3
EU, US, and Asia frequencies supported
Temperature Accuracy: +/- 1°C
Humidity Accuracy: +/- 5%
IP40 equivalent
0 to 50°C operation temperature range

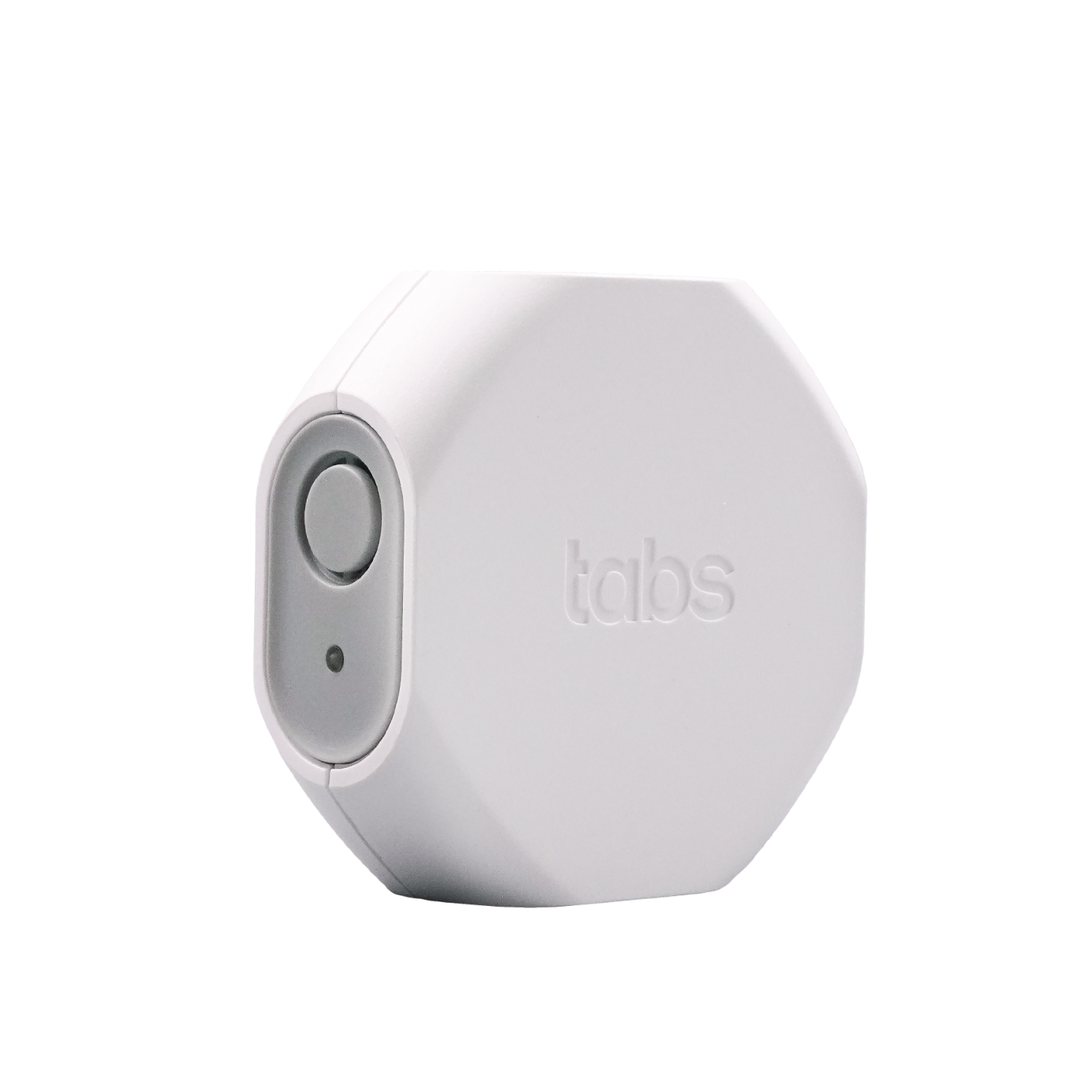

Temperature & Humidity Sensor
The Tabs temperature and humidity sensor is designed for in-home and in-building usage for consumer or facility management applications. The design is optimized for high-volume manufacturing, optimal battery lifetime, and pleasing aesthetics for in-building placement.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | TBHH100 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | LoRaWAN® 1.0.3 |
| Transmit RF Power | US: +19dBm EU: +17dBm |
| Antenna Gain | -2dBi Peak, -5dBi Avg |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP40 equivalent |
| Power Type | 1⁄2 AA Li-SOCl2 Battery x 1, 3.6V, 1200mAh |
| Battery Lifetime* | Up to 16 months |
| Average Current | 135mA maximum / 100uA minimum |
| Dimension | L:50 x D:20 x W:50mm |
| Weight | 30g without battery 40g with battery |
| Sensor | Temperature Accuracy +/- 1°C Humidity Accuracy +/- 5% |
| Type Approval | CE/FCC/IC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
